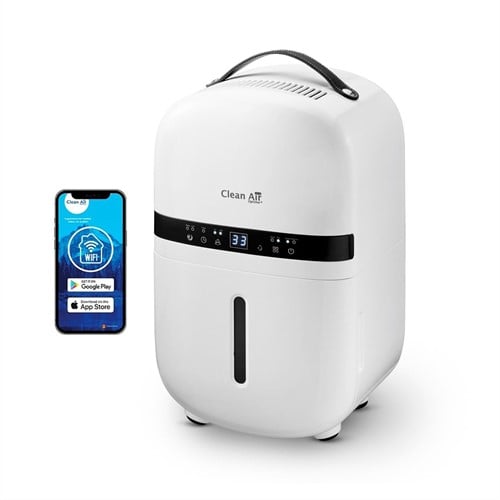

CA-702 Smart multifunctional dehumidifier for the optimum indoor climate
Suitable for rooms up to 20m² / 50m³ / 215ft² - Dehumidification capacity 5 litres per day (30°C / RH 80%)
Humidity is crucial for an
optimal indoor climate. The optimum humidity recommended by medical specialists in enclosed spaces is between 40 and 60% relative humidity.
If the air in indoor spaces is too humid, air quality can be severely adversely affected by mould spores, allergens and respiratory problems.
Optimal humidity is essential for health and damage prevention
Clean Air Optima®'s CA-702 Smart multifunction dehumidifier does not give mould growth due to excessive humidity a chance. With its 5-fold filter technology, the CA-702 Smart purifies practically all undesirable substances, odours and micro-organisms from indoor air.
With a dehumidification capacity of 5 litres per day (at 30°C and 80% relative humidity), the CA-702 dehumidifier with pre-filter, active carbon filter, TRUE HEPA filter, ioniser and UV-C light for air cleaning is suitable for indoor rooms up to 20m²/50m³. The unique design of the CA-702 Smart dehumidifier combines effective dehumidification with powerful air cleaning, elegant design, high functionality and durability as key features.
The versatile Clean Air Optima® CA-702 Smart dehumidifier with powerful air cleaning, is compact, low-noise and highly effective. Can be used at temperatures between 5°C - 32°C and relative humidity higher than 35%. The automatic programme enables it to be used in rooms without direct supervision. Elegant design and colour scheme fit in with any interior. Suitable for use in a smaller living area and office, laundry room, drying room, gym, warehouse, camper, caravan etc.
CA-702 Smart dehumidifier: a four-season system
With its 2 in 1 dehumidification and air purification function, the CA-702 Smart provides a year-round optimal indoor climate . Dehumidification stops once the set relative humidity is reached but air purification remains active. With its continuous air purification function, the multifunctional Clean Air Optima® CA-702 Smart frees indoor air from allergens, mould spores, annoying animal hair, pollen, dust/fine dust and odours all year round.

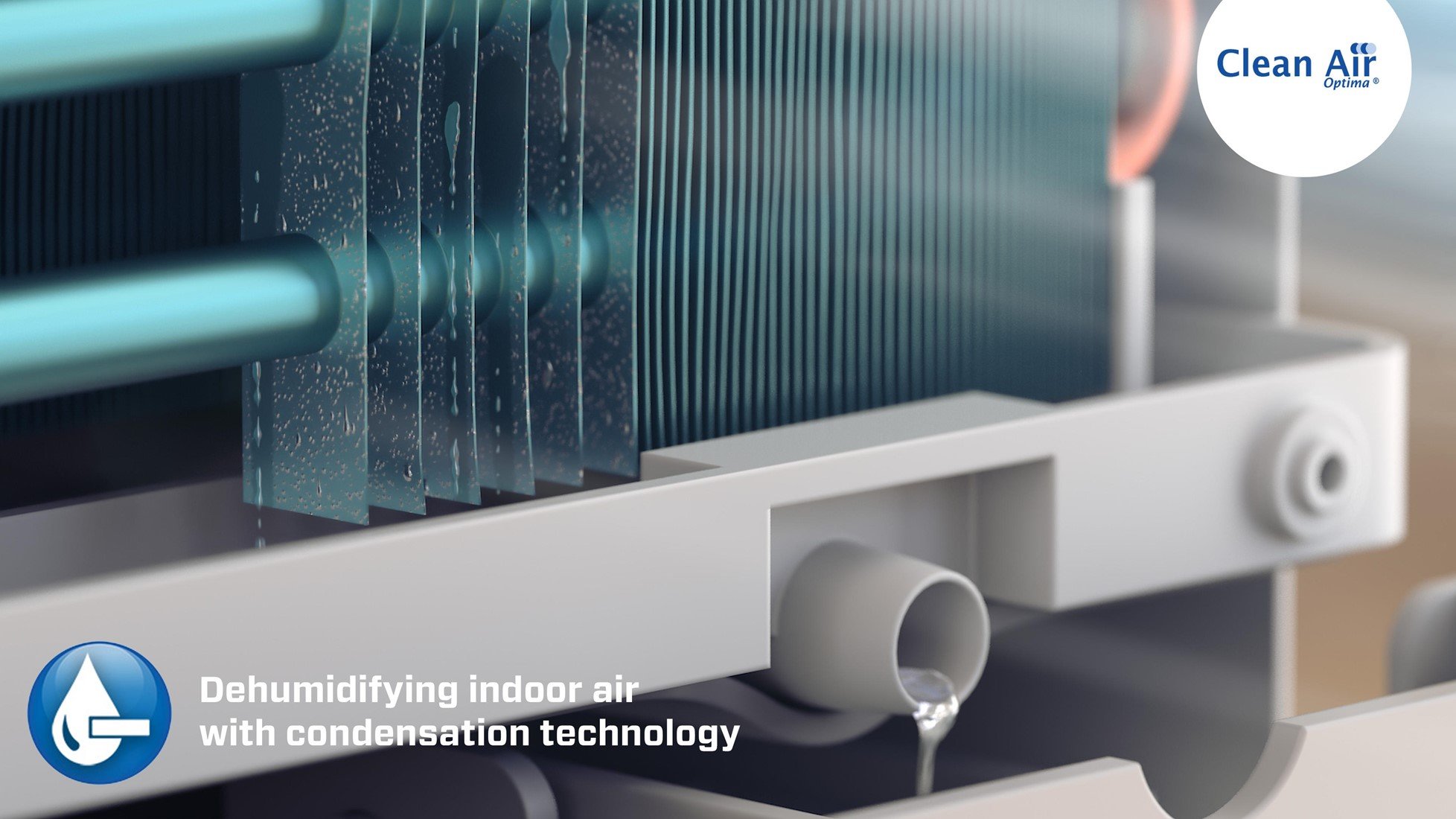

Dehumidifying indoor air using condensing technology
The compact and super-powerful Clean Air Optima® CA-702 Smart condensing dehumidifier with a 2 in 1 system for dehumidification and air purification extracts excess moisture from indoor spaces up to 20m²/50m³ with a capacity of up to 5 litres/day (30°C/RH80%) and actively protects against mould growth, stains, corrosion and mud odour. This also protects the building fabric and, more importantly, your health.
A condensing dryer is the type of dehumidifier most commonly used and the CA-702 Smart can be used in wide-ranging temperatures between 5 and 32°C. This effective dehumidifier is equipped with a compressor that passes the moist indoor air through a cooling element. Humid ambient air is thus cooled down in a very short time. The moisture in the air condenses because air can hold less moisture at low temperatures. Condensation is collected in the water tank and can be drained directly by connecting the drain hose included in the supply.
Five filter technologies for effective air purification
1. Pre-filter
The pre-filter captures large dust particles such as: lint, hair and pet dander.
2. Activated carbon filter
Activated carbon neutralises smoke, chemicals, gases and odours, prevents the growth of bacteria, viruses and mould.
3. TRUE HEPA H13 filter with nanosilver coating
Purifies 99.97% of all suspended matter down to 0.3 microns (0.3 µm) from the air. A HEPA filter is the most effective air filter for removing:
• (fine) dust, cigarette smoke, pollen
• allergens
• all other solid particles
The antibacterial layer of the nanosilver coating eliminates bacteria and mould.
4. UV-C lamp
The ultraviolet light from the permanent lamp (UV-C radiation) with a wavelength of 254nm kills health-harming microorganisms such as: germs, viruses, mould (mould spores) and bacteria.
5. Ioniser
Capacity > 3,000,000 negative ions / cm³ that are dispersed throughout the room, thus neutralising harmful substances and odours. The ioniser produces negative ions to purify the indoor air and enrich it with active oxygen. This neutralises unpleasant odours and purifies pollutants from the air. Negative ions also have a strong anti-static action.
Built-in hygrostat for
automatic dehumidification
The Clean Air Optima® CA-702 Smart condensing dehumidifier features a built-in humidistat for measuring, monitoring and automatically controlling relative humidity.

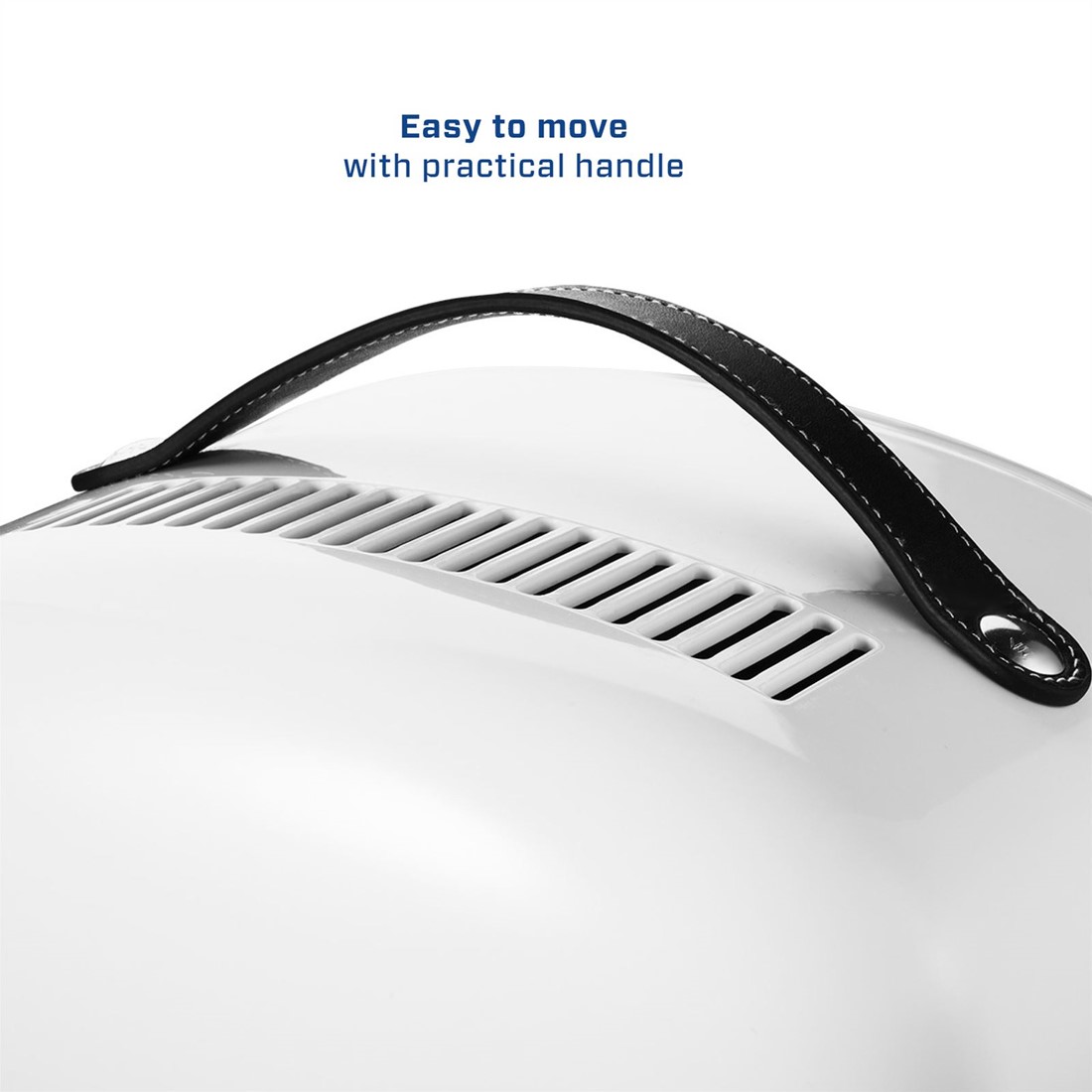

Practical handle
The Clean Air Optima® CA-702 Smart condensing dehumidifier features a sturdy, leather handle. Using this practical handle, the dehumidifier can be easily moved from one room to another.
Large water tank and continuous water drainage
The dehumidifier switches off automatically once the water tank is full with an LED indication in the display. The CA-702 Smart dehumidifier's large water tank has a capacity of 1.5 litres. The tank is easily removable from the front.
Condensation collected in the water tank can also be drained directly by connecting the drain hose included in the supply. This means that the CA-702 dehumidifier is suitable for continuous operation and unattended use.

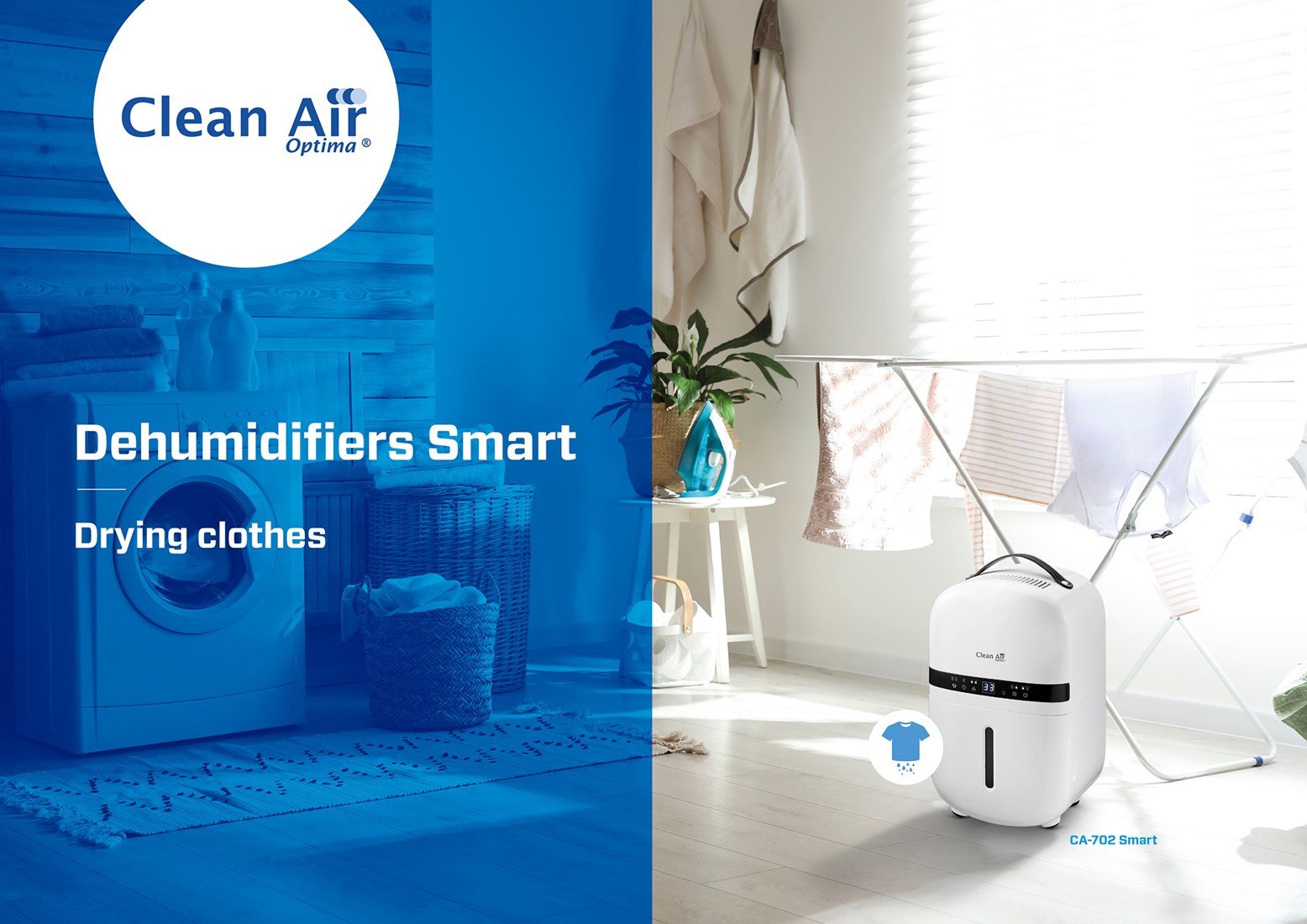

Laundry drying
The Clean Air Optima® CA-702 Smart dehumidifier with its 2 in 1 system for dehumidification and air purification supports your laundry drying. The high dehumidification capacity with high fan speed ensures good air circulation in your laundry room.
The pre-filter and TRUE HEPA H13 filter with a nanosilver coating captures large dust particles such as dust fibres and lint from the laundry room and the activated carbon filter neutralises odours.
The negative ions produced by the ioniser during the laundry drying process also have a strong anti-static effect, which benefits laundry drying.
Automatic defrost function and restart
The Clean Air Optima® CA-702 Smart condensing dehumidifier features an automatic defrost function. Defrosting starts automatically as soon as the sensor detects that the temperature is below the set value and stops automatically when defrosting is complete. The defrosting process involves freeing the evaporator from ice by stopping the cooling process and running the fan, which melts the ice. When it restarts, the dehumidifier automatically resumes its operation while maintaining the settings.
Settings are still maintained even after a power outage, when the dehumidifier will restart automatically.

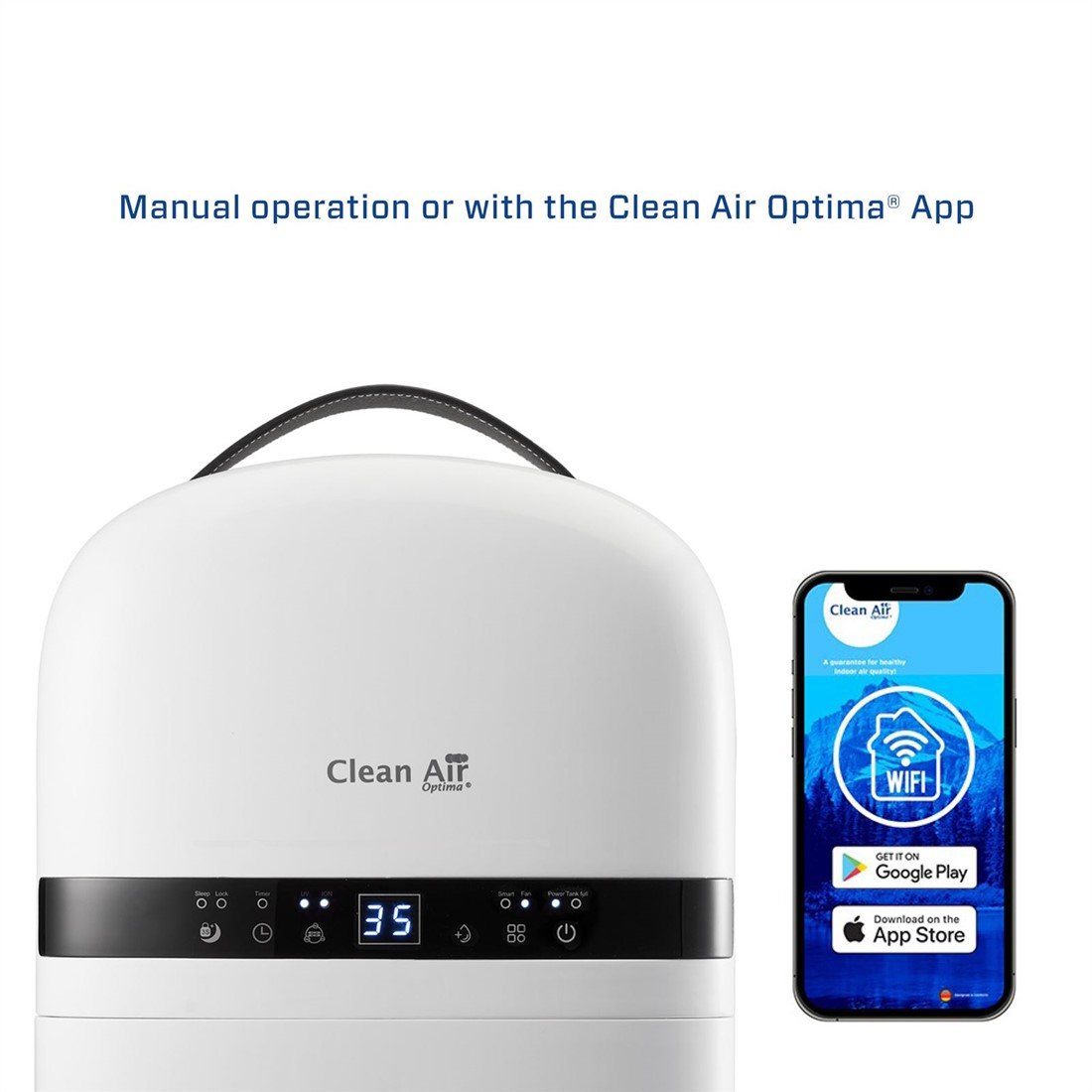

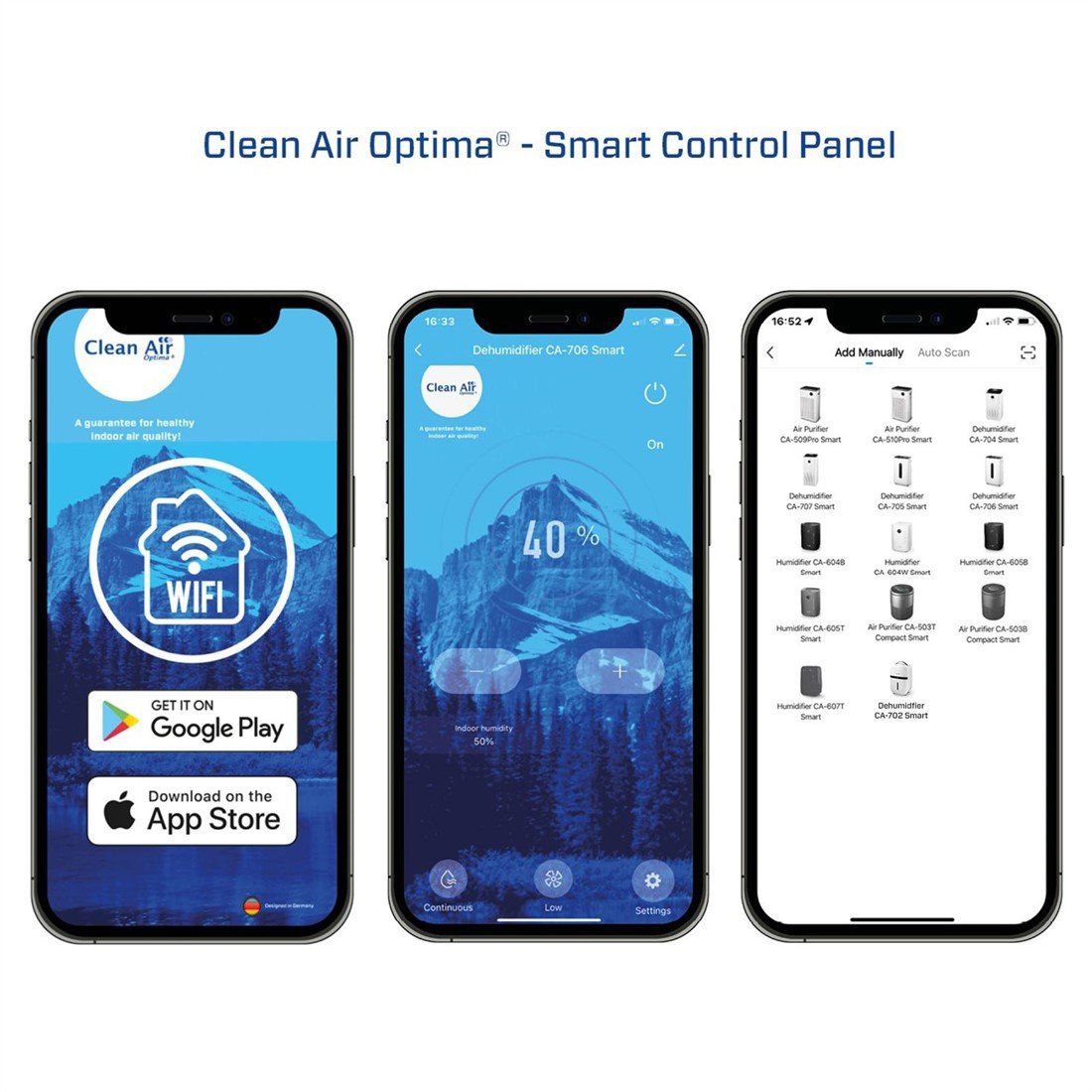

Simple operation: Via the control panel and/or
with the Clean Air Optima® App

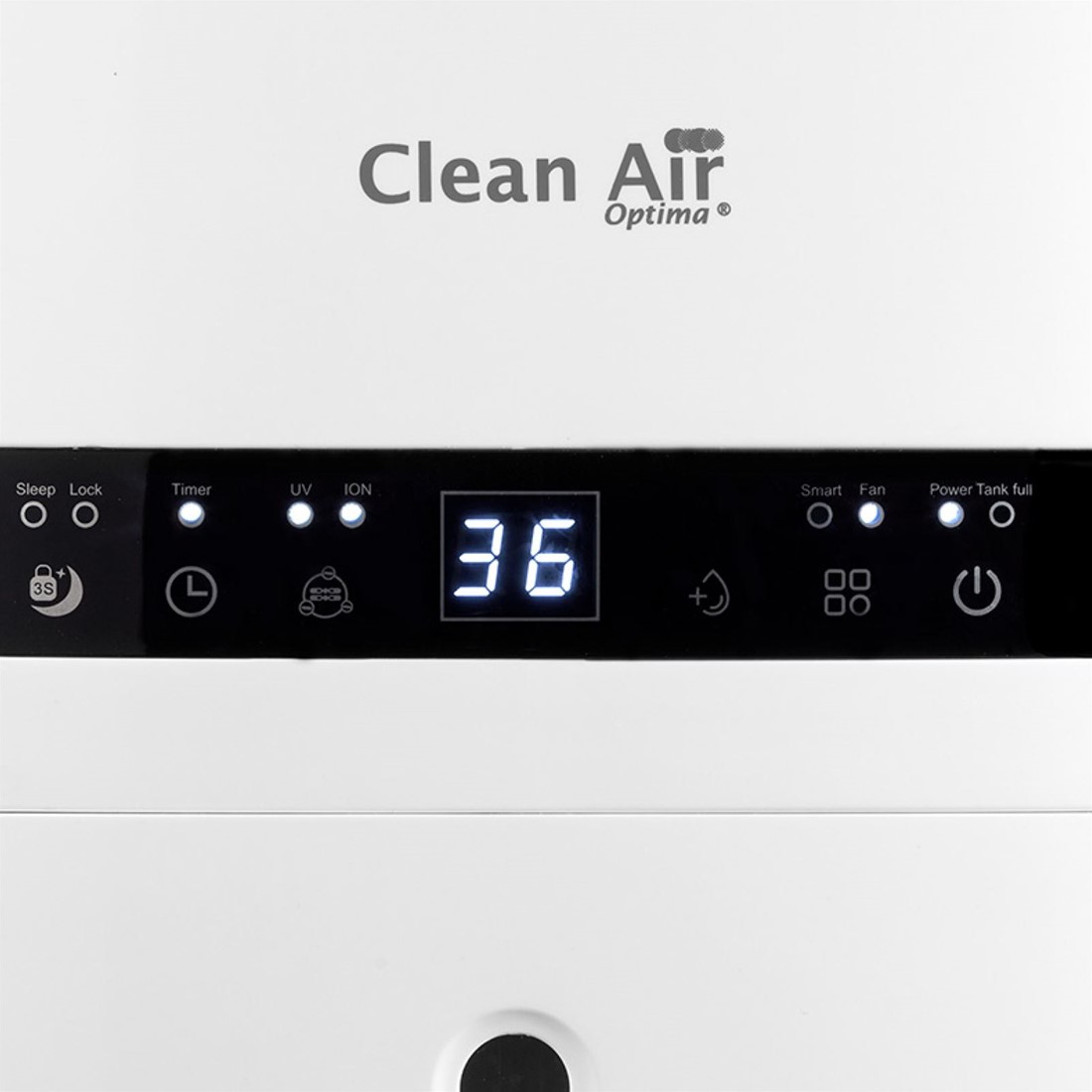

The clearly set out digital control panel on the front of the dehumidifier features touch keys for easy selection of the desired settings.
CA-702 Smart dehumidifier setting options

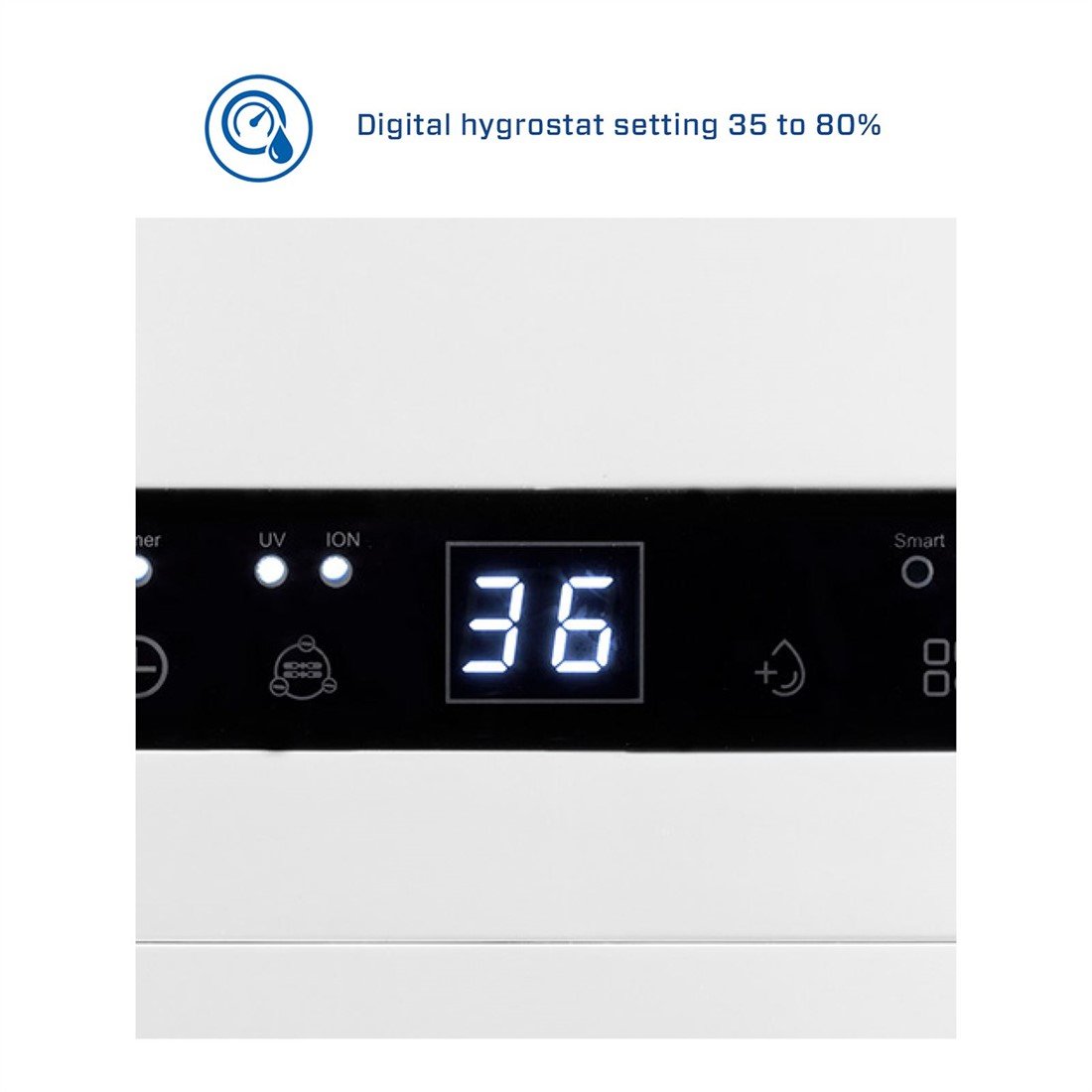

• The hygrostat allows you to set the desired humidity level yourself (adjustable between 35 - 80%)
• Mode-knop voor het instellen van het gewenste programma (Luchtontvochtiging, Luchtreiniging)
• Mode button for setting the desired programme (Dehumidification, Air cleaning)
• Switching the ioniser and UV-C lamp on and off
• Weekly programming and switch-on and switch-off time 0 - 24 hours (can be set via the App)
Dehumidifier display
• Current humidity
• Dehumidification indicator light
• Air purification indicator light
• Water tank full indicator light
• 0-24 hour timer
These functions can be set via the digital control panel and/or the Clean Air Optima® App.
Use and maintenance
Water tank and water drainage
Switch the unit off first and then pull the plug out of the socket.
Emptying the water tank

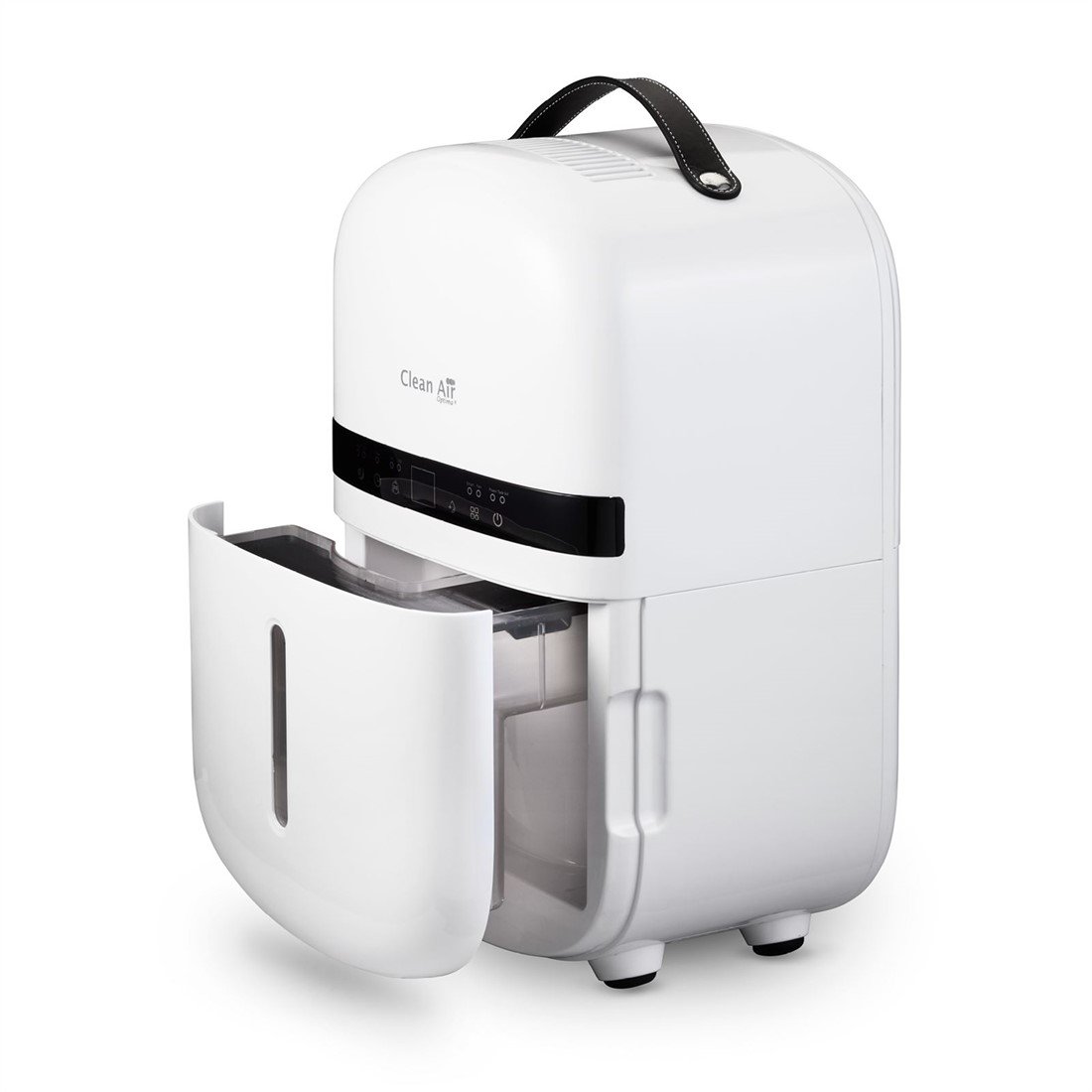

The water tank is located at the front of the unit in the bottom section. The water tank can be pulled out of the unit through the recesses on the side. After emptying the water tank, refit it in reverse order.
Automatic water discharge

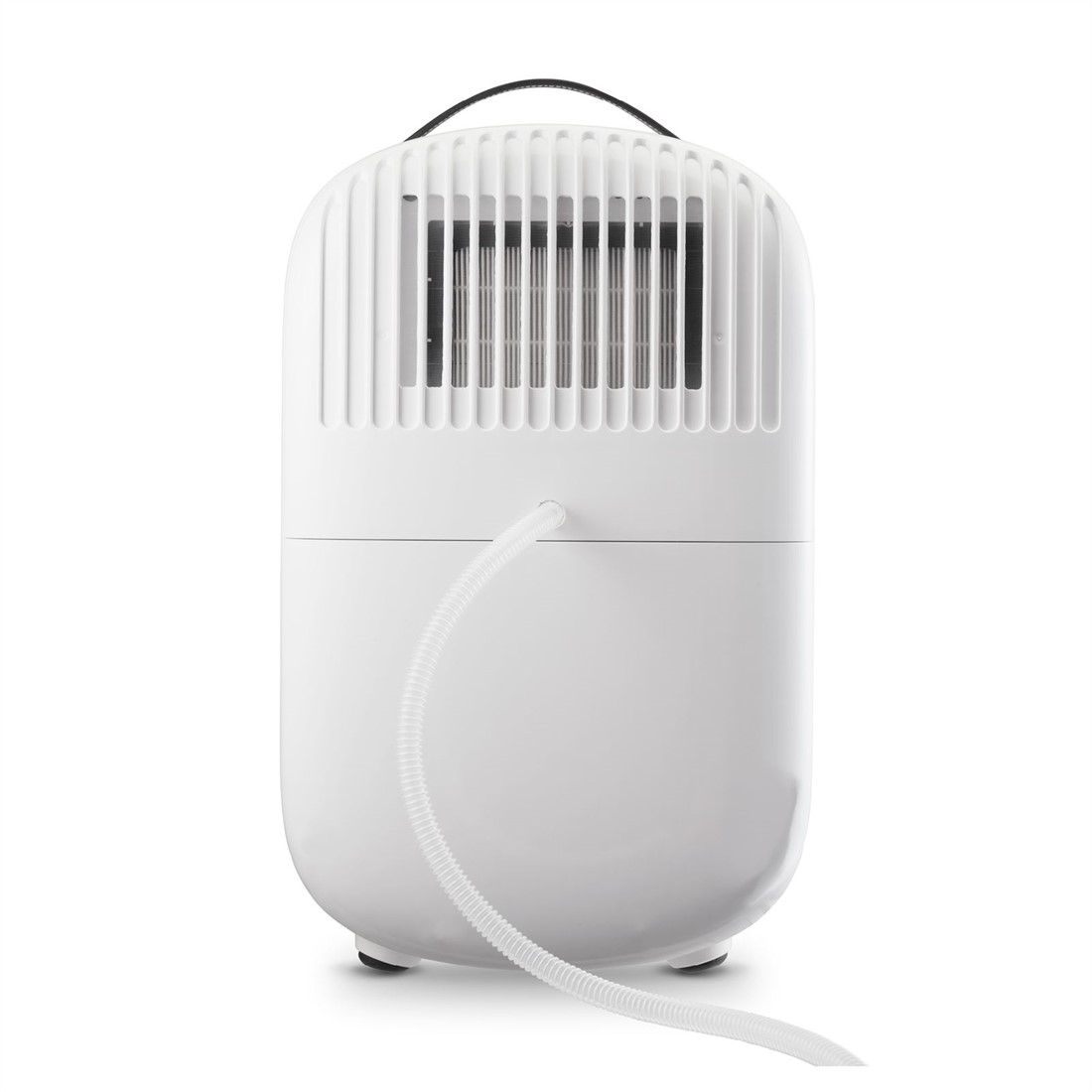

Water can be drained continuously by connecting the drain hose included in the supply (10 mm diameter / 1.5 metres long) to the rear of the unit. Attention: the drain hose should always face downwards to avoid water damage. Using the standard setting, the design of the unit with a humidistat and fitting the drain hose make the CA-702 Smart dehumidifier suitable for extended use in unattended rooms..
Filter maintenance (display message 00)
Permanent pre-filter maintenance
Clean the permanent pre-filter every 2 weeks by vacuuming or rinsing with lukewarm water (NB: replace the filter dry. Do not clean with water above 40°C, do not clean with alcohol, petrol or any other flammable cleaners).
1. Activated carbon filter
The activated carbon filter effectively filters gases, chemicals, cigarette smoke, volatile organic compounds (VOCs) and odours such as pet, mould, kitchen and paint odours as well as formaldehyde, benzene, ammonia, nicotine, etc. from indoor air.
2. TRUE HEPA H13 filter with nanosilver coating
Purifies 99.97% of all suspended matter down to 0.3 microns (0.3 µm) from the air. A HEPA filter is the most effective air filter for removing:
• (fine) dust, cigarette smoke, pollen
• allergens
• all other solid particles
The antibacterial layer of the nanosilver coating eliminates bacteria and mould.
Replacing filters
The Clean Air Optima CA-702 Smart is equipped with a filter service life monitoring mechanism that indicates that the filter (HEPA + Activated Carbon Filter) must be replaced after 400 operating hours. The indication that the filter needs to be changed is provided by the double-zero (00) indicator light on the dehumidifier starting to flash. Reset the filter replacement timer by pressing and holding the humidity setting button for about 3 - 5 seconds. The timer has been successfully reset once the indicator light goes out.
Activated Carbon Filter + TRUE HEPA H13 Filter to be replaced after 2-3 months.
Miscellaneous
Clean Air Optima® dehumidifier storage
If the dehumidifier will not be used for an extended period of time:
1.Empty the water tank completely, check that there is no water left in the tank.
2. Unplug the unit and fold up the power supply cord..
3. Remove the filters and clean them. Refit the filters in the unit after cleaning.
4. Store the dehumidifier in a cool, dry location, away from direct sunlight, extreme temperature and excessive dust.
