Humidifier CA-605T Smart Top Filling

Optimum humidity

The optimum humidity recommended by medical specialists is in the range of 40 to 60% relative humidity. People perceive the air in indoor spaces with humidity in this range as pleasant and having optimum humidity. This humidity level is thus ideal for the health of people and animals as well as protecting furniture, wooden floors, musical instruments, antiques, plants and many more valuable items indoors from drying out.

The CA-605T Smart, an effective humidifier with ioniser, UV-C lamp, aromatherapy and top filling, automatically regulates optimum humidity and improves air quality in all indoor spaces occupied by people for living, sleeping, working, recreation, etc.

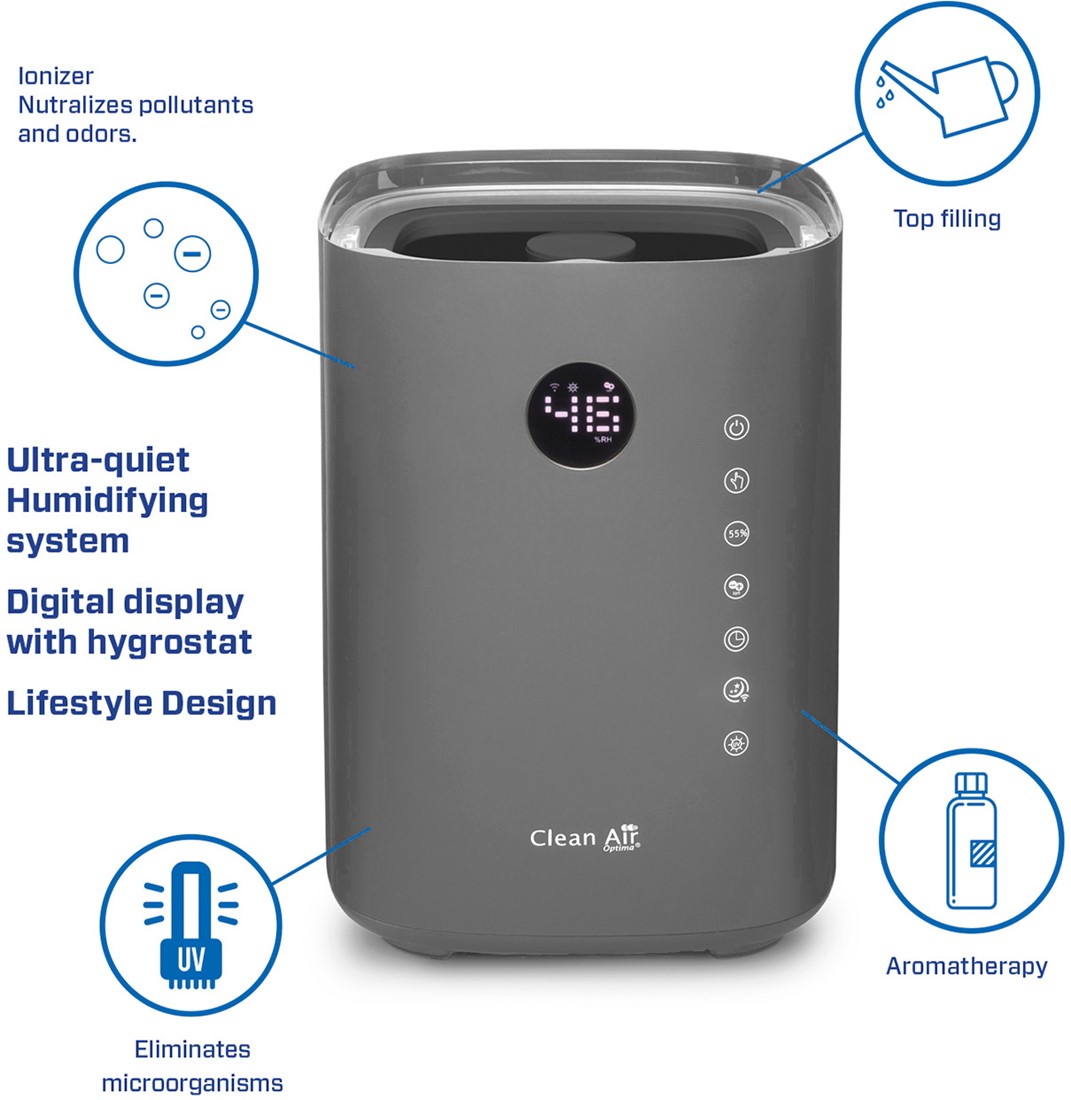

Humidifier CA-605T Smart with ioniser, UV-C lamp, aromatherapy and top filling

Suitable for small and large spaces up to 65m² / 160m³ / 699ft²

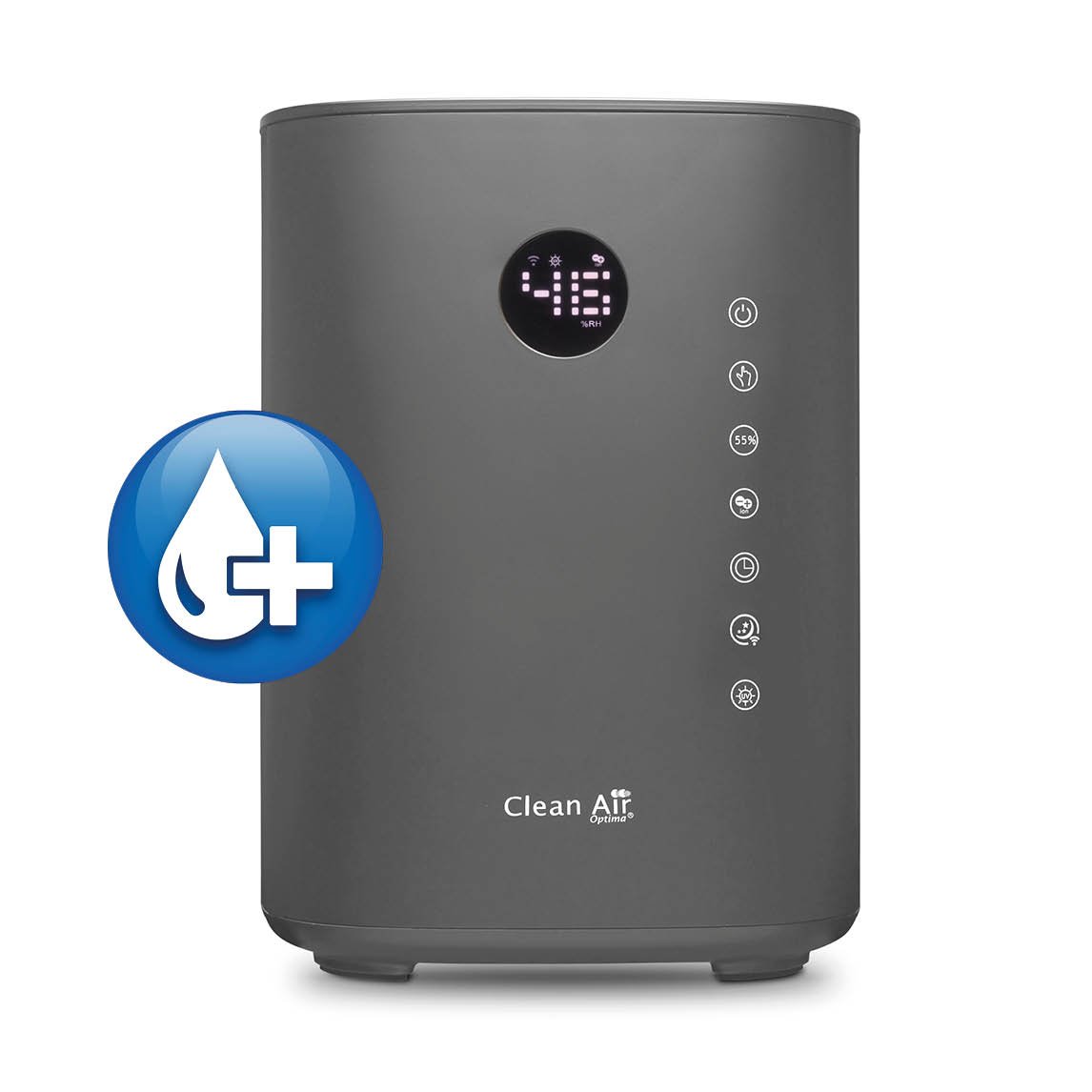

Humidifying indoor air by ultrasonic humidification

Healthy, fresh and optimally humidified indoor air prevents irritated airways, dry skin and drying out of valuable interior items. Ultrasonic technology can be used to achieve the right humidity in indoor spaces during periods of low relative humidity.

Ultrasonic technology is one of the most effective methods of humidifying indoor spaces. Ultrasonic water atomization is carried out by a small, high-frequency vibrating plate (membrane) in the water tray. The ultrasonic membrane finely atomises the water into a cold mist, which is then released to the indoor air by a gentle airflow from a fan.

CA-605T Smart Top Filling humidifier humidification capacity: min. 120 ml/h - max. 480 ml/h

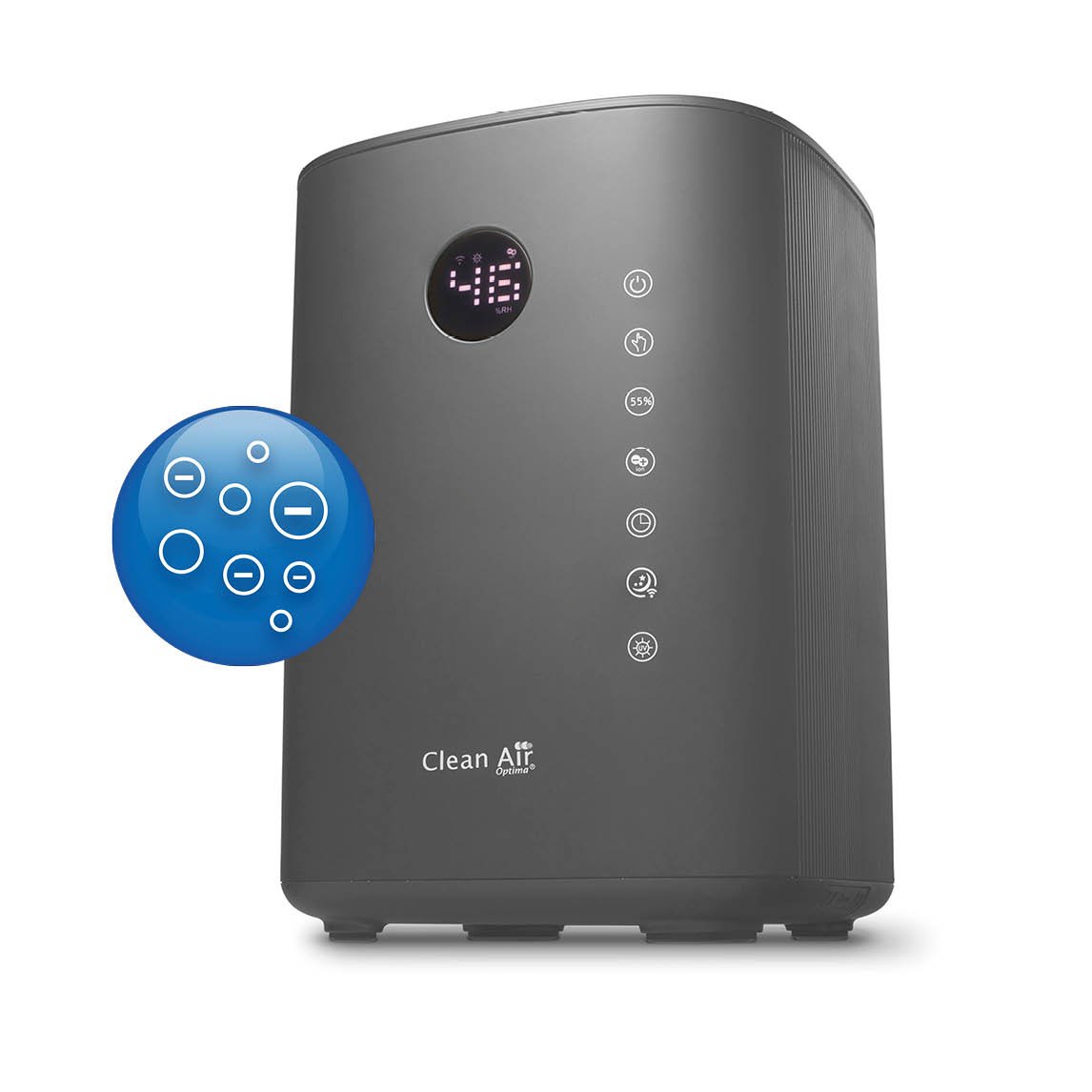

Ionisation air purification

The built-in ioniser produces negative oxygen ions that purify and refresh indoor air in addition to humidification. Negative ions attach themselves to dust particles, microorganisms and other undesirable substances in the air and bind them together. These particles become heavier than the air, drop down and are thus filtered out of the air.

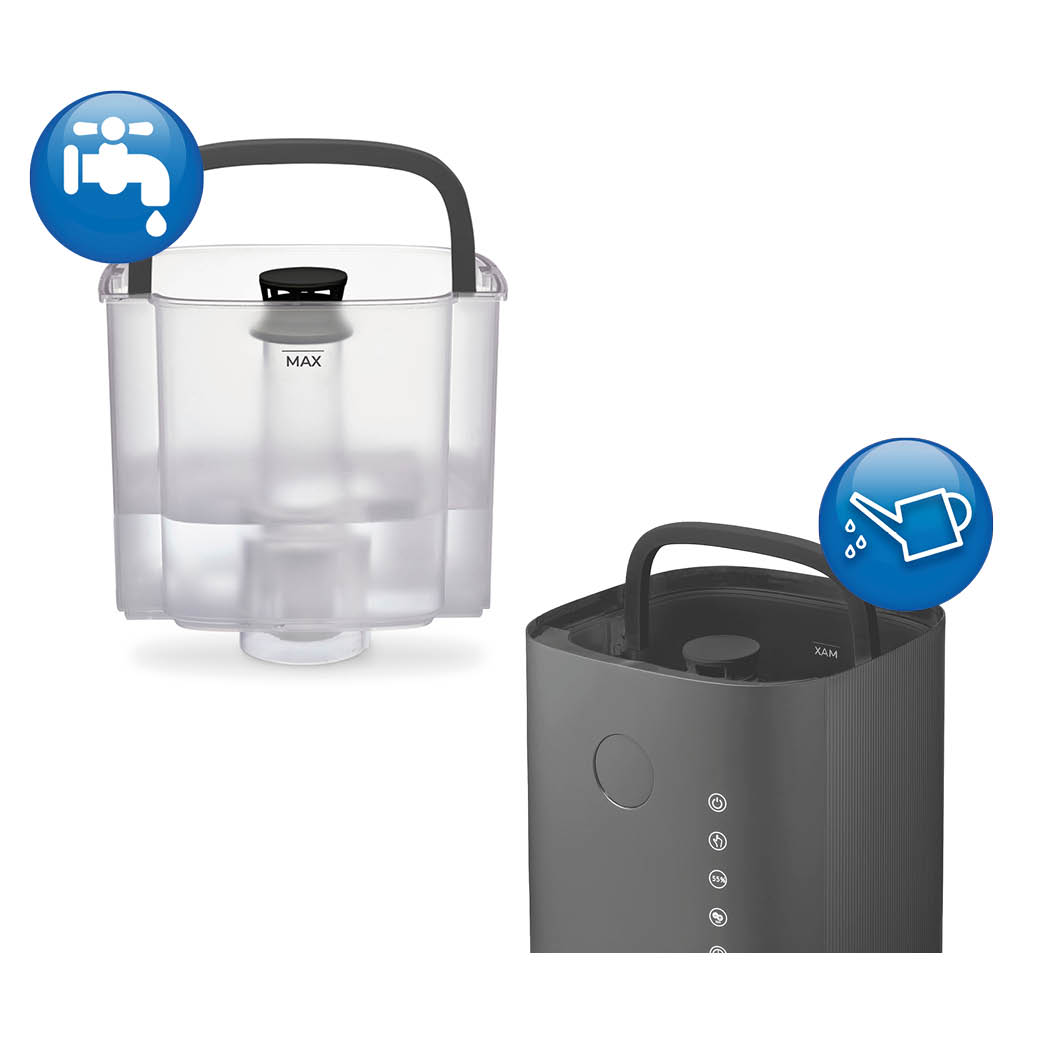

Easy to fill water tank

The Clean Air Optima® CA-605T ultrasonic humidifier Smart Top Filling model with ioniser, UV-C lamp and aromatherapy consists of two parts: the lower part with the water tray and membrane and the removable upper section consisting of the 3.8-litre water tank. The water tank can be easily and quickly removed for filling with water from the tap. The humidifier can also be filled with water from the top (Top Filling).

With its 3.8-litre water tank, the CA-605T Smart humidifier has an operating time of about 8 hours.

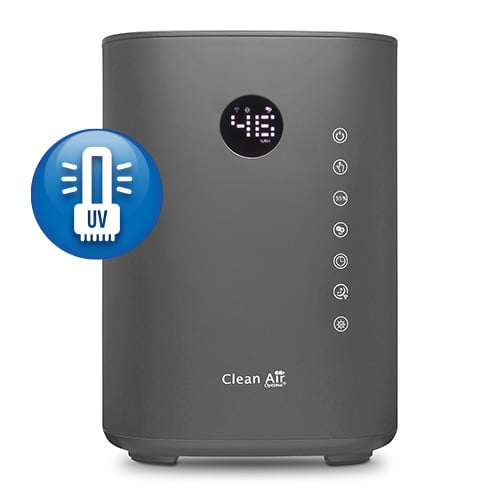

Ultrasonic humidification with UV-C sterilisation

The ultrasonic membrane converts water into cold micro-fine mist, which passes through the UV-C lamp for sterilisation and is then released to the indoor space via the spray nozzle..

The UV-C lamp makes an additional contribution to eliminating bacteria and viruses, thereby preventing odour emanating from the water.

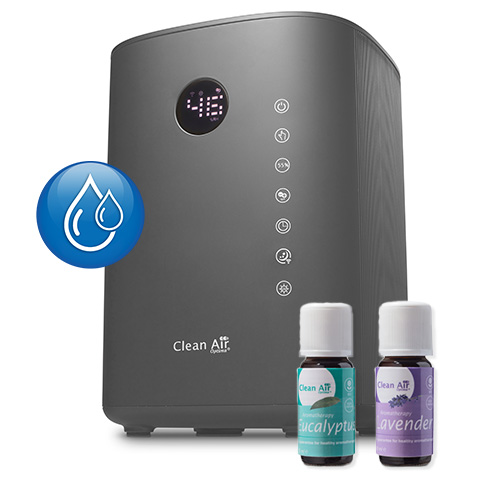

Aromatherapy with Clean Air Optima® essential oils

The use of essential oils is known as aromatherapy. Aromatherapy focuses on maintaining and promoting health, and healing disorders. Aromatherapy has an air purifying effect and removes unpleasant odours. Use it to create a pleasant ambience in your living spaces and enjoy feeling comfortable and more relaxed. Clean Air Optima®'s high-quality essential oils are micro-fine atomised by the CA-605T Smart Top Filling ultrasonic humidifier with ioniser, UV-C lamp and aroma atomiser, creating a fragrance composition tailored to your wishes.

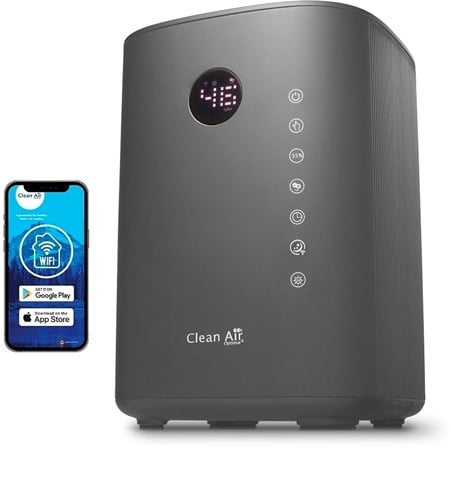

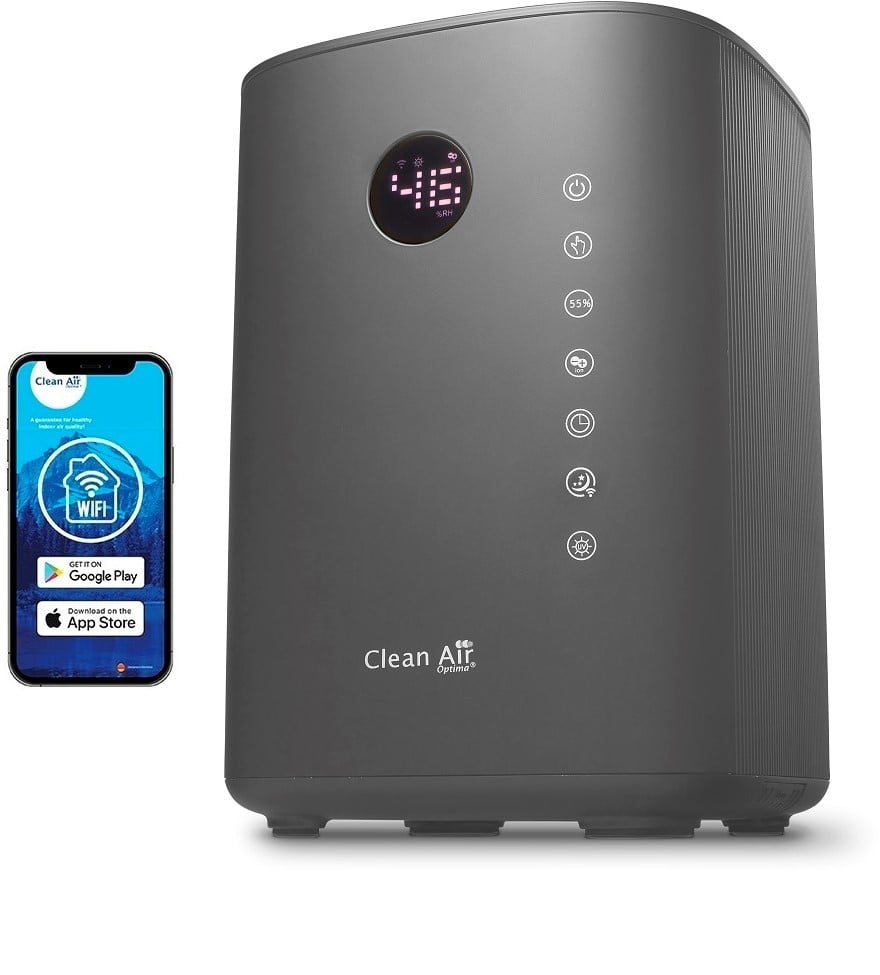

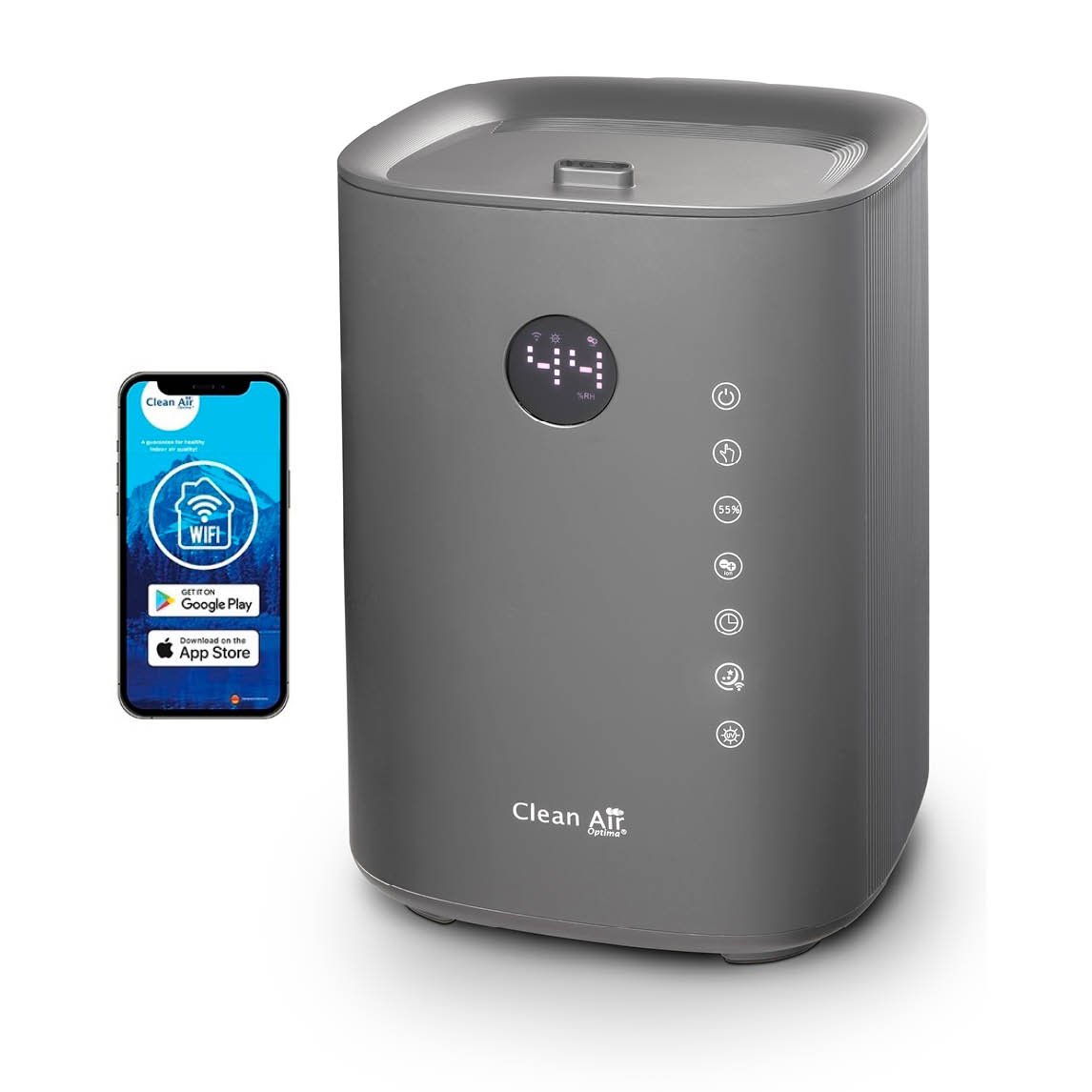

Simple operation: Via the control panel and/or
using the Clean Air Optima® App

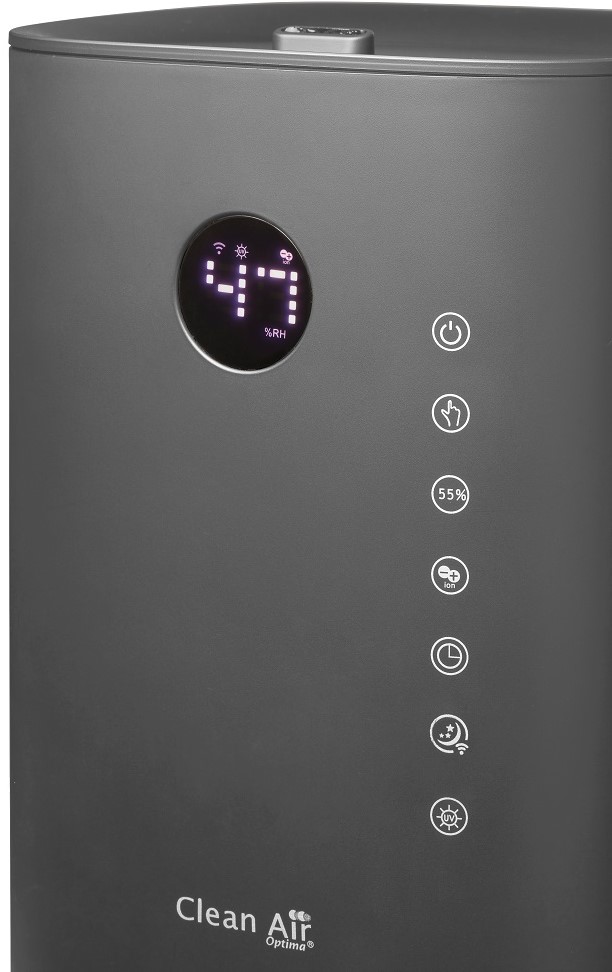

The clearly set out digital control panel on the front of the humidifier, features seven touch keys for easy selection of the desired settings.

Setting options for the CA-605T Smart Top Filling humidifier:
• Humidity adjustable between 30-75%
• High-Medium-Low-Automatic humidification rate
• Ioniser (can be switched on and off)
• Timer function for switch-off time (1-12 hours)
• Weekly programming and switch-on and switch-off time 0 - 24 hours (adjustable via the App)
• Sleep function
• UV-C lamp (can be switched on and off)

These functions can be set via the digital control panel and/or the Clean Air Optima® App.

Compact design fits in with any interior

With its compact and beautifully styled design and neutral colour scheme, the unique Clean Air Optima® CA-605T Smart humidifier with ioniser, UV-C Lamp, aromatherapy and Top Filling can fit in with any interior.

Usage and maintenance

Cleaning the transducer (ultrasonic membrane), water tray and water tank

Method for this cleaning process:

1. Dispense 2 capfuls of Clean Air Optima® Cleaner & Descaler into the water tray (spread 1 capful onto the surface of the transducer and 1 capful into the water tray) and leave to act for 2 -5 minutes.
2. Carefully remove the mineral (limescale) deposit from the surface of the transducer with a small brush, cotton bud or toothbrush.
NB: never use sharp or hard objects to clean the transducer.
3. Then add water up to the rim of the water tray and leave it to act for a minimum of 30 and a maximum of 60 minutes.
4. Thoroughly rinse the transducer and the water tray with water.
5. If there are still traces of limescale visible, we recommend that you repeat the cleaning and descaling process.
6. Clean the inside of the water tank with mild washing-up liquid and rinse with clean water.

After cleaning and descaling, your unit will be hygienically clean, free from limescale, free from bacteria, free from viruses and immediately ready for use again.

NB:
To clean and descale the unit, it needs to be switched off such that the atomization does not release acid into the air via aerosols.

Clean Air Optima® Cleaner & Descaler is not suitable for the water tank. We recommend using mild washing-up liquid for the water tank.

Water Filter W-02 (display message 00)

The Clean Air Optima® humidifier CA-605T Smart is equipped with a water filter that takes care of descaling, cleaning and softening the tap water, thereby preventing limescale formation and bad-smelling water. The water filter can be cleaned twice a week under running tap water and is effective for one to three months.

To indicate that the water filter W-02 needs to be replaced, the humidifier's double-zero indicator light begins to flash after 400 hours of operation. Reset the water filter timer by pressing and holding the humidifier power button for about 3 seconds. When the indicator light goes out, the timer has been successfully reset.

Using essential oils

Only Clean Air Optima® essential oils developed for ultrasonic aroma vaporisers and humidifiers can be used for aromatherapy.

The use of other essential oils or additives not developed for ultrasonic aroma vaporisers/humidifiers can cause damage to the unit! Units damaged by such additives are not covered by warranty.

Setting the mist level and humidity

1. Press the button with the "Hand-icon": (Manual Button) to set the mist level. You can choose from low, medium, high or automatic. This determines the density of the mist that is emitted.
2. Then set the desired humidity level by repeatedly pressing the Humidity button ("55% button") until the level you want is reached. Then wait until the flashing stops; this indicates that the setting has been accepted.

Please note:
When you reset the mist level, the previously set desired humidity is reset. You will then need to set it again.
