Risks from dry and poor air quality in indoor spaces
Especially in the cold seasons the relative humidity often falls below the relative humidity of about 45 - 55% recommended by medics for living and working spaces. In summer, humidity in homes, offices and buildings is often too low due to cooling by air-conditioning systems.
Dry air has a negative effect on the well-being of people and animals and can cause respiratory illnesses and skin complaints if very dry indoor air is prolonged. Dehydration can also be very harmful for furniture, parquet floors, antiques and plants.
The highly effective humidification by the air washer CA-803 serves to prevent dry heating air and works preventively against:
• Itchy eyes, irritated respiratory tract and dry skin
• Colds and itchy coughs due to parched mucous membranes
• Dry throat and stuffy nose
• Dry skin and cracked lips
• Cracks in wooden furniture, parquet floors and musical instruments
Simultaneously, the air washer CA-803 frees indoor air of:
• Cold tobacco smoke
• House dust, pet hairs and pollen

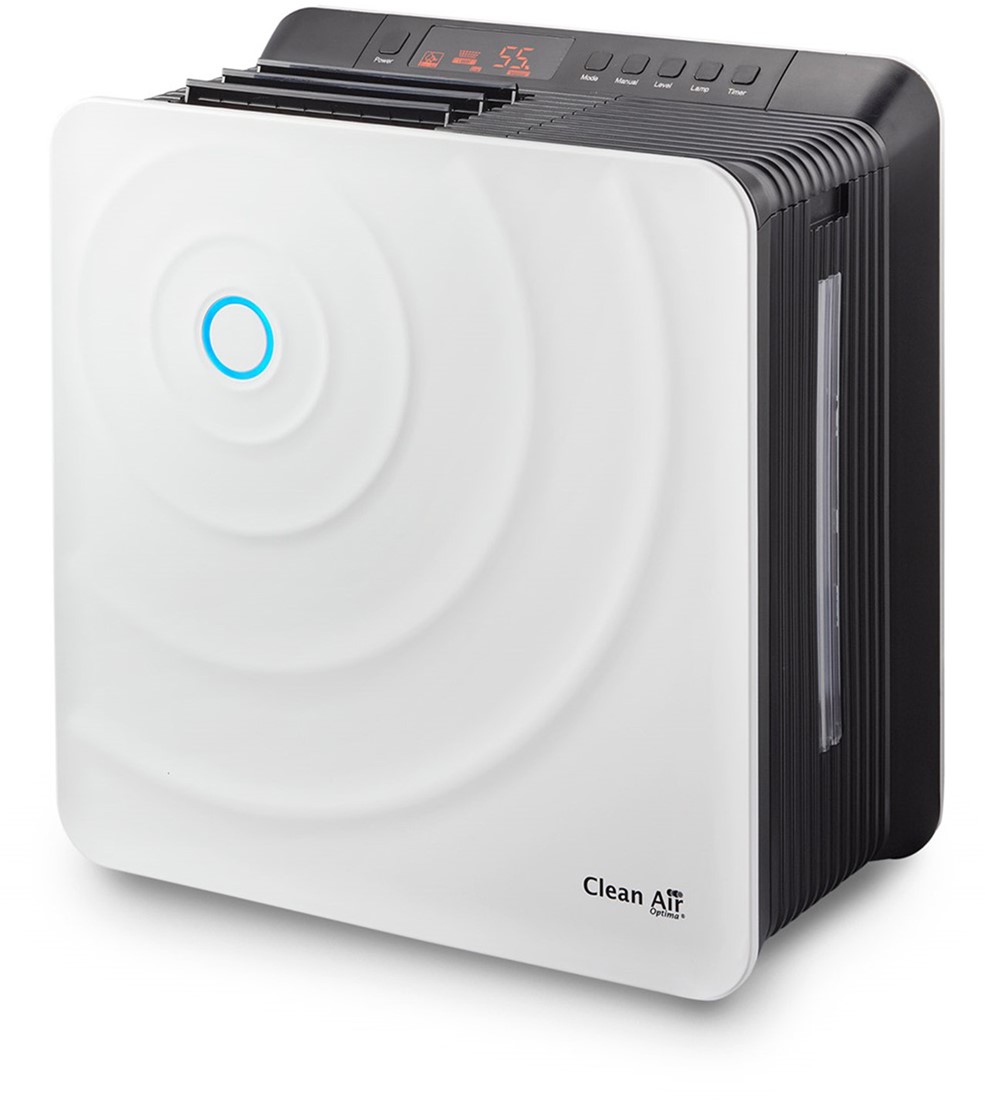

Air Washer CA-803 2in1: Humidify and Air Purifier CA-803
Suitable for rooms up to 35m² / 90m³ / 375ft²
Unique air washer system for optimum indoor climate
The Clean Air Optima® air washer CA-803 offers simultaneous effective humidification and air purification in your indoor space. The combination of four proven technologies such as cold evaporation for humidification, air washing for cleaning the air, antibacterial water filter and activated carbon pre-filter ensure a fresh and healthy indoor climate.
The air washer CA-803 is equipped with a hygrostat for automatic control of humidification, has settings for day operation, whisper quiet (night) operation with dimming displays in sleep mode. Its particularly quiet operation makes this unique system suitable for use in the bedroom or children's room as well as in offices, treatment rooms and all other areas where quiet operation is required of equipment.
Air washing provides powerful humidification and effective air purification

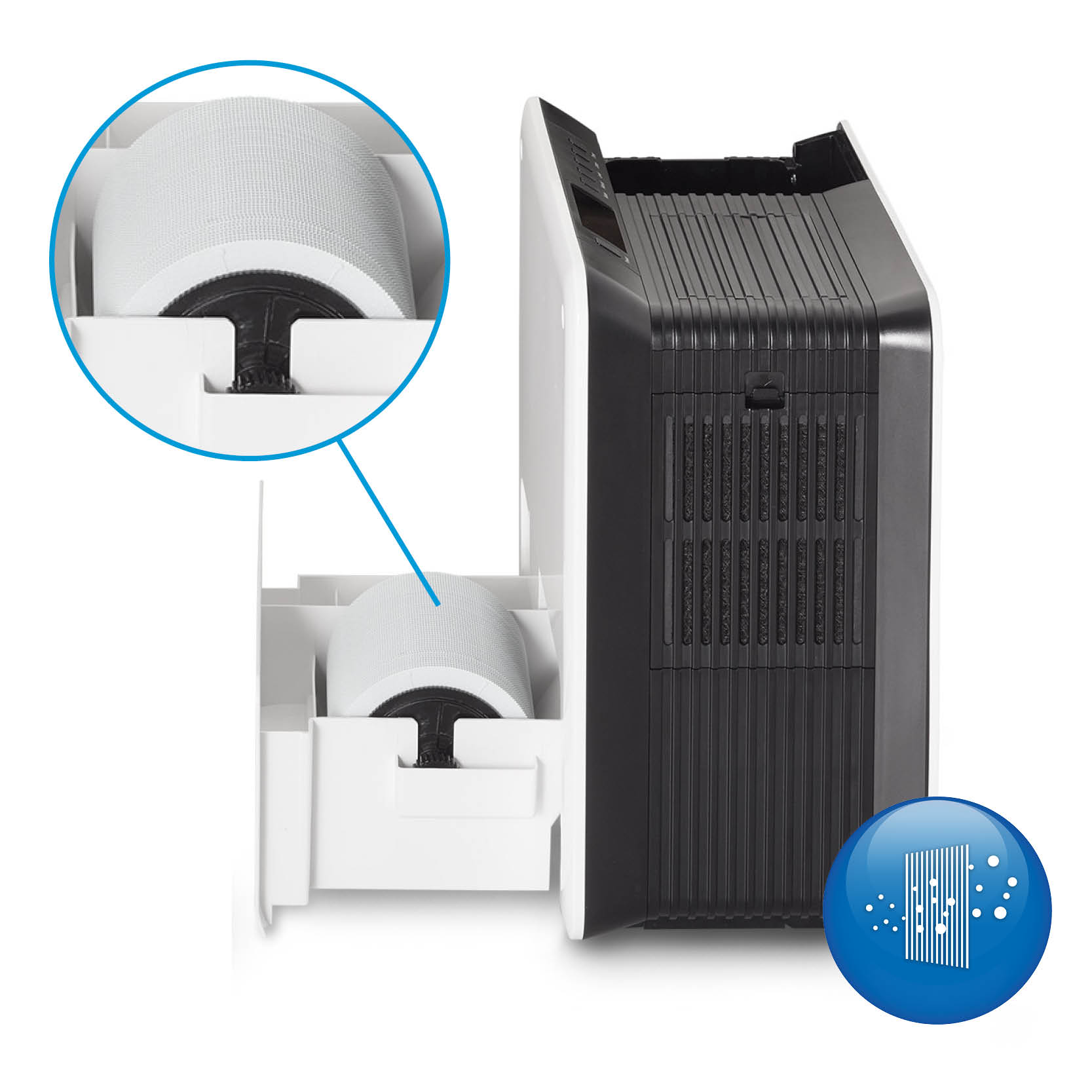

The air washer CA-803 evaporates the water by means of a rotor with humidification discs: this rotor rotates slowly like a wheel through the water bath. When the part of the disks that has gone through the water moves back up, the fan airflow is blown over the disks, causing the water in the humidification disks to evaporate.
Dust, pollen and other odor-causing and contaminant particles remain trapped in the humidification discs and when this section of discs rotates through the water again, the contaminants are released to the water and sink to the bottom of the removable and easy-to-clean water reservoir. The absorbed pollution can therefore no longer be released to the indoor air.
Method of operation hybrid system of the Clean Air Optima® air washer CA-803
The air washer CA-803 operates without filter mats. The polluted and dry indoor air drawn in by the fan is first passed through the activated carbon pre-filter and then over the rotor with humidifying discs rotating in the water bath. The humidification discs are equipped with honeycomb structure for intensive humidification. Pre-filtered air is thereby washed and cleaned naturally, similar to a rainstorm or waterfall outright.
Smallest particles up to 10 micrometers are bound and separated in the water. This humidifies the air and frees it from dust, pollen and particle-bound odors that can no longer be released to the indoor air. The 3-position adjustable fan airflow carries the moist and clean air into the interior through the top of the unit.
Easy operation with digital display

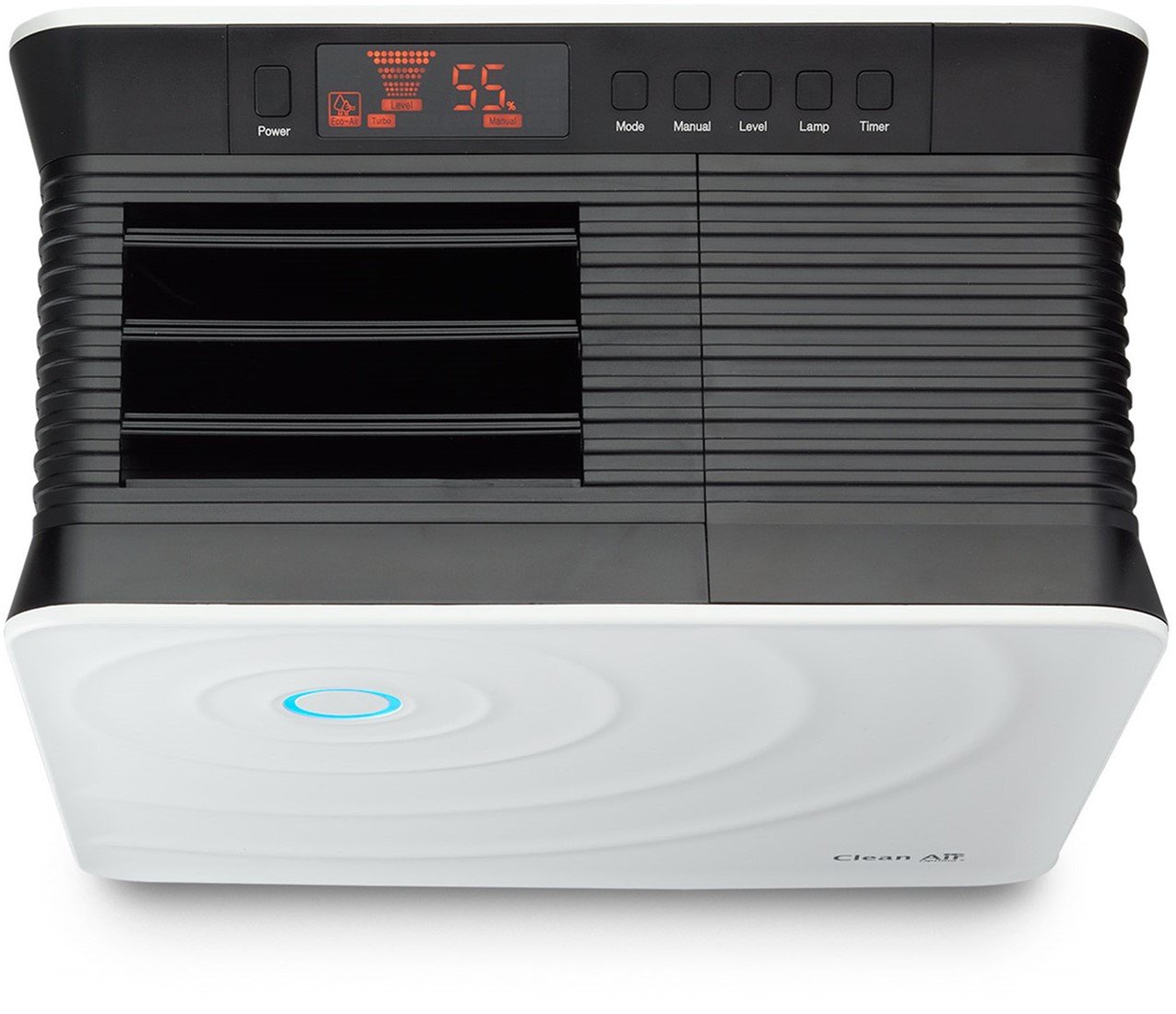

The large digital control panel at the top of the CA-803 air washer provides clear information about the various setting options.
Settings of the air washer CA-803:
• Air humidity adjustable between 40-75%
• Humidification rate High-Medium-Low
• Timer function for switch-off time (1-8 hours)
• Round display lighting (switchable on and off)

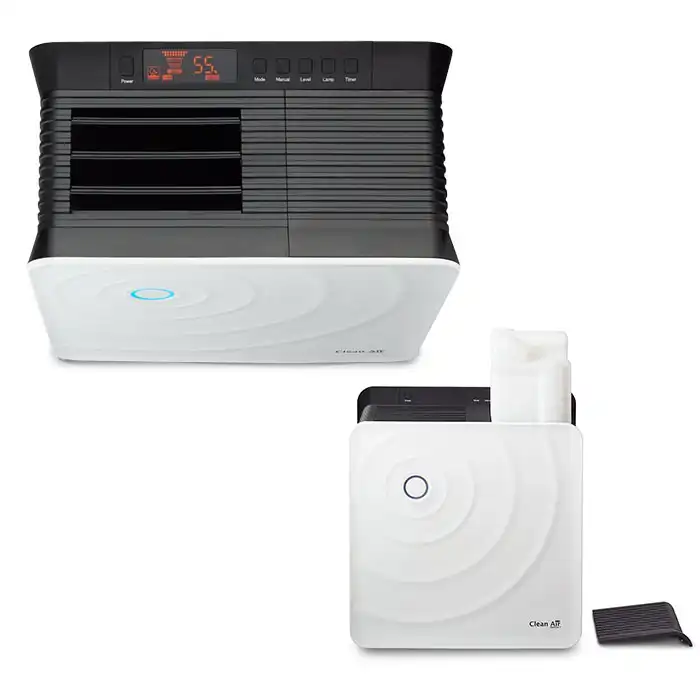

For easy filling, the water tank can be easily and quickly removed from the top of the air washer for filling with tap water under the faucet.
Due to the large 4 liter water tank, the air washer CA-803 has an operating time of about 18 hours without refilling!
Usage and maintenance
Cleaning water tank and water basin
Every two weeks, remove residual water from the tank and water tank. The humidification discs can be easily cleaned regularly (every four weeks) in the dishwasher. The disc package is dishwasher safe up to 40°C.
Cleaning water tank
Shake the water-filled tank 4-5 times with the lid closed. Clean inner walls of the emptied water tank with a cloth. Do not use chemicals.
Clean water tray and rotor with Clean Air Optima® Cleaner & Descaler
The procedure for this cleaning:
1. Dispense 2 - 4 caps Clean Air Optima® Cleaner & Descaler in the water tray of the air washer.
2. Add water to the edge of the water basin.
3. Leave on for a minimum of 30 minutes and a maximum of 60 minutes.
4. After cleaning and descaling, rinse the water basin thoroughly with water.
5. If traces of limescale are still visible, we recommend repeating cleaning and descaling.
The humidification discs can be easily cleaned regularly (every four weeks) in the dishwasher. The disc package is to 40°C dishwasher safe.
To clean and descale, the unit should be turned off so that the atomization does not release acid into the air via aerosols.
Clean Air Optima® Cleaner & Descaler is not suitable for the water tank (water tank). We recommend for the water reservoir (water tank), to use a mild detergent.
Filter maintenance CA-803
Cleaning Eco-Air plus / Activated carbon - pre-filter air washerr
The contaminated indoor air is led into the unit on the side through the combined activated carbon and pre-filter. Pre-filter captures larger dust particles such as hair, lint, dander and other pollutants. The activated carbon in the pre-filter frees the air drawn in from gases, chemicals, cigarette smoke, volatile organic compounds (VOC) and odors such as pet, mold, kitchen and paint odors.
The combined active carbon and pre-filter is located in the lid on the side of the unit and can be easily removed manually. In continuous operation (24 hours / day) and under normal conditions, we recommend cleaning this filter twice a week by (gentle) vacuuming or brushing.
Nano - silver water filter
The Clean Air Optima® air washer CA-803 features an antibacterial water filter. This filter consists of a cylinder filled with plastic balls. These plastic pellets are nanosilver coated to prevent the growth of bacteria and odor form. This filter is located in the water tank and can be easily cleaned by rinsing with tap water.
Depending on the type of use, the Eco-Air plus filter has a lifespan of about 6 months and the Nano - Silver water filter about 12 months.
